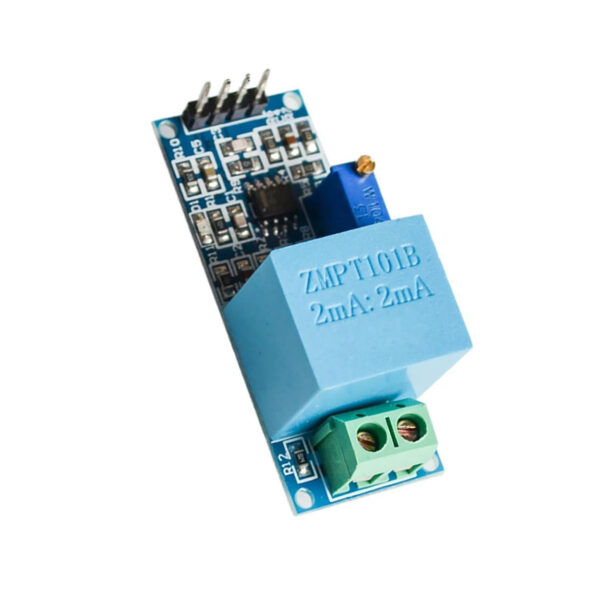

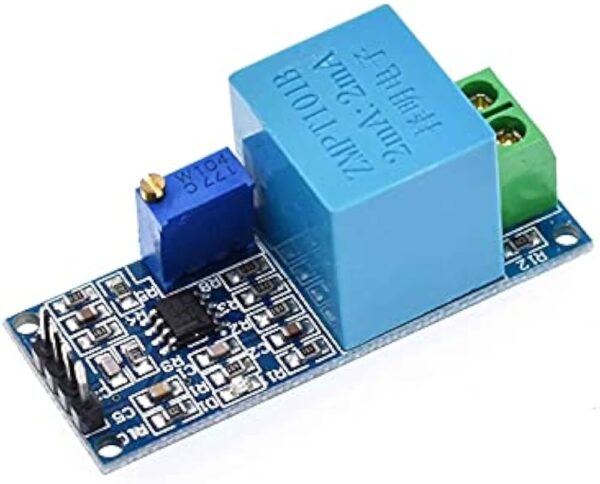

The ZMPT101B AC Voltage Sensor Module is a high-precision voltage sensor used for monitoring AC voltage in power systems. It uses a ZMPT101B precision voltage transformer to isolate and step down the AC voltage signal, making it safe to interface with microcontrollers. The module includes an operational amplifier circuit and a multi-turn potentiometer for sensitivity adjustment, allowing accurate voltage measurement. This sensor is commonly used in energy monitoring systems, smart meters, voltage monitoring devices, and IoT-based power management projects. Key Features Measures AC voltage safely using transformer isolation High precision voltage measurement Adjustable sensitivity using multi-turn potentiometer Analog output signal Compact and reliable design Easy interface with microcontrollers Technical Specifications Parameter Value Operating Voltage 5V Output Type Analog Sensor Type Precision Voltage Transformer Measurement AC Voltage Sensitivity Adjustable Pin Configuration Pin Description VCC Power Supply (5V) GND Ground OUT Analog Output What’s in the Box 1 × ZMPT101B AC Voltage Sensor Module
