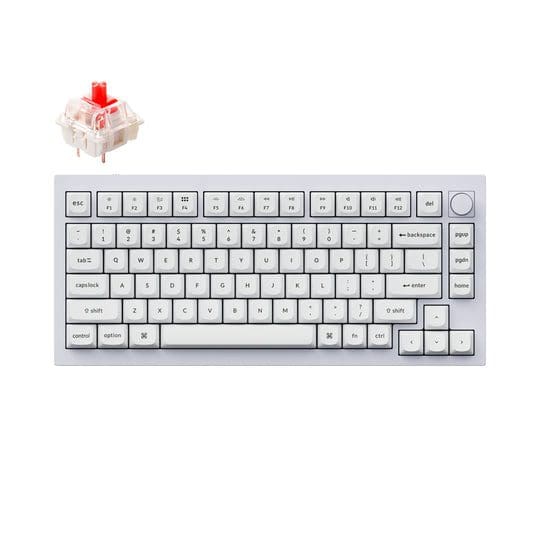

Gateron Phantom Yellow & Silver Switch version uses the double-shot ABS keycaps and aluminum plate. A fully customizable 75% layout mechanical keyboard featured QMK / VIA support; designed with all the premium features with unlimited possibilities. The sculpting of a piece of art. This keyboard is not just a tool, but a piece of art on your desk. The Q1 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes. You can assemble every part. To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish. PS: Changing the knob with a badge or key requires an additional PCB (sold separately). Double-Gasket Design Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better. An Epic Core Inside The Keyboard A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.*The special edition (Orange Yellow and Champagne Gold version) is equipped with MCU ATMEGA32U4. Please note that the knob color may be slightly different with the case (the blue and grey only) as these parts are manufactured separately. Programmable Knob Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease. You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. Switch layouts between macOS & Windows. Built with the Mac users’ experience in mind while still retaining the compatibility for Windows devices, the Q1 is one of the only few in the market that comes with a Mac multimedia key layout for Mac enthusiasts. With VIA, you can configure your keymap for both Mac and Windows devices. Program The Q1 with QMK & VIA. With the Q1 ‘s open-source QMK/VIA, you can intuitively remap your favorite keys and create macros with any key (including the knob) on any operating system (macOS, Windows, or Linux) for a fluid workflow. Download VIA for Mac Download VIA for Windows Download VIA for Linux Keychron Q1 Source Code Get the keymap working on VIA Since the VIA code for the Q1 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on “Show Design tab” on “Settings” tab, enable “Use V2 definitions (deprecated)” on the “Design” tab, and drag the JSON file into the “Design” tab on VIA to get the Q1 keymap working on VIA. Q1 v2 Knob Version Keymap JSON Download Keymap JSON file for Q1 knob version ANSI/US Q1 v2 Knob Special Edition (Champagne Gold, Orange Yellow, Red, and Purple) Keymap JSON Download Keymap JSON file for Q1 Knob Special Edition ANSI Q1 v2 Non-Knob Version Keymap JSON Download Keymap JSON file for Q1 non-knob version ANSI/US Note: If the VIA software still does not detect your keyboard after you upload the latest JSON file above, please update your keyboard with the latest firmware here. The VIA software will only pair with your keyboard when the JSON file corresponds with the right firmware version. Learn more about how to use VIA > Hot-swappable The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches. South-facing RGB LED Lights The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard. Note: The Q1 V2’s top case has sharper corners to make it much more compatible with third-party keycaps, such as MT3, SA, XDA, etc. Pre-lubed Gateron G Pro Switch Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with our revamped stabilizers and factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed. Note: The Phantom switches have phantom light effects that allows the RGB backlight to have the switches’ own case color. We have the Q1 purple mounted with Keychron K Pro banana switches, offering a slightly different tactile typing feel to G Pro browns for your choice. All New Screw-In PCB Stabilizers The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q1 V2 also supports third-party stabilizers including Cherry or Durock. What's in the box? Specs Width 145 mmLength 327.5 mmFront Height 22.6 mm (without keycaps)Back Height 35.8 mm (without keycaps)Feet Height 2.4 mmAngle 5.2°Weight 1825 g ± 10 g (Fully Assembled version)Body Material Full CNC machined aluminumPlate Material SteelPolling Rate 1000 Hz KeycapDouble-shot keycaps, not shine-through (Fully Assembled version)MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)*The special edition (Orange Yellow, Champagne Gold, Red, and Purple version) is equipped with MCU ATMEGA32U4.BacklightSouth-facing RGB LEDSwitchGateron G Pro / Gateron Phantom / Keychron K Pro (Fully Assembled version)Hot-swappable SupportCompatible with most of the 3 pin & 5 pin MX style mechanical switches such as Gateron, Cherry MX and Kailh, etc.StabilizerScrew-in PCB stabilizerConnectivityType-CCableType-C cable Type-A to Type-C adapter Download Q1 user Guide
