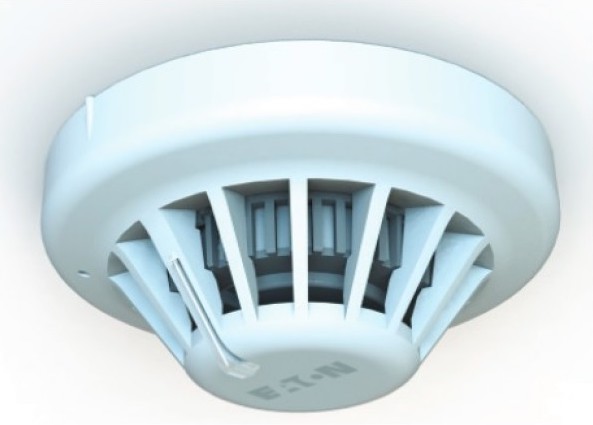

Description of cooper addressable heat detector: Code ULCAPT340 Description Addressable Sensor, Photo-Thermal Standards UL268 Supply Ratings Working Voltage 18V dc to 30V dc Voltage Waveform Filtered dc /- 1 V (max), ripple @120Hz Standby Current 220 µA (average) Alarm Current 5mA (max) Timings Start-up Time 2 seconds Reset Time 2 seconds (max) Sensitivity Sensitivity 2.55 /- 0.33%/ft Sensitivity Checker Use No-Climb, TRUTEST, UL Listing 77TL Heat Class Heat Element Rating 135ºF Heat Detector Spacing 50ft (heat alone operation) Mounting Position Ceiling in open areas Environmental Operating Temperature 32ºF to 100ºF Compatibility Compatibility Indentifier W002 Compatible Bases WBA or UCAB300 Suitable for use with Cooper UL Fire Systems
