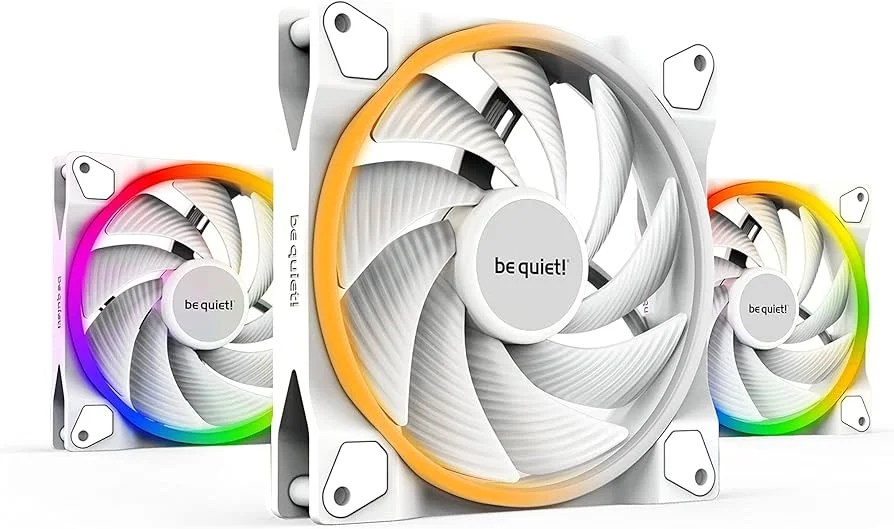

General data Model Light Wings White 120mm PWM Dimensions (mm) 120 Color option Black | White Lighting ARGB LED Fan speed at 100% PWM / 12V (rpm) 1700 Noise level at 100% PWM / 12V (dB(A)) 20.6 Airflow at 100% PWM / 12V (CFM / m3/h) 41.51 / 70.53 Air Pressure at 100% PWM / 12V (mm H2O) 1.66 Mechanical specifications Dimensions (L x W x H), (mm) 120 x 25 x 120 Weight incl. fixed cables (g) 200 Bearing technology Rifle Motor technology 4-pole fan motor Push pin fixing – Screw fixing ✓ Cables / Connectors Daisy-chain compatible ✓ Lighting connector 5V 3-pin ARGB Connector 4-pin PWM Cable length (mm) 500 Cable sleeve – Performance / Noise Airflow at 100% PWM / 12V (CFM / m3/h) 41.51 / 70.53 Air Pressure at 100% PWM / 12V (mm H2O) 1.66 Noise level at 100% PWM / 12V (dB(A)) 20.6 Lifespan (h / 25°C) 60.000 Zero RPM mode – Electrical specifications Rated Voltage DC (V) 12 Operating Voltage DC (V) 5 – 13.2 Input current (A) 0.07 Safety current (A) 0.38 Input power (W) 4.56 Rated Current LED (A) 0.60
