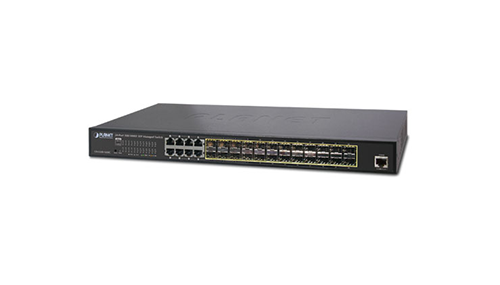

The Planet Switch GS-5220-16S8C-EU is a Layer 2 managed core fiber switch designed for high-density performance. It supports IPv4 and IPv6 hardware static routing and has 24 100/1000Base-X dual-speed SFP slots in a 1U case. This switch is ideal for networks that require flexible management and long-distance connectivity. It can cross over different VLANs and IP addresses, making it highly secure and adaptable. With its SFP slots, it can connect up to 120 kilometers via optic fiber cabling, making it suitable for various applications, including small and medium-sized businesses, campuses, and enterprises. The GS-5220-16S8C has an intelligent SFP diagnostic mechanism. The SFP slots support dual-speed fiber transceivers, allowing for a distance of up to 2 kilometers using multi-mode fiber and up to 10-50 kilometers using single-mode fiber or WDM fiber. The SFP-DDM function provides real-time monitoring of parameters such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, making it easier for network administrators to maintain the switch. The GS-5220-16S8CR model is equipped with redundant AC/DC power supply, ensuring continuous operation. It has one 100-240V AC power supply unit and one 36-60V DC power supply unit, providing a reliable and scalable power system. The 36-60V DC power supply allows the GS-5220-16S8CR to act as a telecom-level device in the electronic room, making it suitable for high-tech facilities. **Effective Alarm Alerts for Better Protection** The GS-5220-16S8C and GS-5220-16S8CR support a fault alarm feature that alerts users when there is an issue with the switches. This means you don’t have to waste time trying to find the problem. It saves you time and resources. **Solution for IPv6 Networking** With the increasing number of IP cameras and wireless access points being installed and deployed in various applications, more and more networks are adopting the IPv6 protocol for next-generation networking. The GS-5220-16S8C and GS-5220-16S8CR support both IPv4 and IPv6, making them the best choice for IP surveillance and wireless service providers connecting to IPv6 networks. **Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management** In addition to their high-speed transmission performance and advanced layer 2 and layer 4 technologies, these switches also offer layer 3 IPv4/IPv6 VLAN routing. This feature allows you to connect different VLANs and IP addresses, providing a highly secure, flexible management system, and simplifying networking applications. **Robust Layer 2 Features** The GS-5220-16S8C and GS-5220-16S8CR can be programmed for various advanced switch management functions, including dynamic port link aggregation, Q-in-Q VLAN, private VLAN, and Multiple Spanning Tree Protocol (MSTP). They also support Layer 2 to Layer 4 Quality of Service (QoS), bandwidth control, and IGMP/MLD Snooping. With the link aggregation of supporting ports, these switches allow for high-speed trunking, combining multiple fiber ports, and support fail-over. **Enhanced Security** The GS-5220-16S8C and GS-5220-16S8CR offer a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for securing your network. You can use it to restrict network access by denying packets based on source and destination IP addresses, TCP/UDP ports, or defined network applications. The protection mechanism also includes 802.1x port-based and MAC-based user and device authentication, ensuring user privacy with the private VLAN function. Furthermore, these switches provide DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection functions to prevent IP snooping attacks and discard ARP packets with invalid MAC addresses. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before. **Efficient and Secure Management** The GS-5220-16S8C and GS-5220-16S8CR managed switches are equipped with various management interfaces, including console, Web, and SNMP. These interfaces provide an easy-to-use platform-independent facility for managing and configuring the switches. The GS-5220-16S8C and GS-5220-16S8CR support the standard Simple Network Management Protocol (SNMP), allowing management via any software that supports the protocol. For text-based management, the switches can be accessed via Telnet. Additionally, the console port with a Cisco-like command line interface makes it easier for users to manage the switches. Furthermore, the GS-5220-16S8C and GS-5220-16S8CR offer secure remote management by supporting SSH, SSL, and SNMPv3 connections. These connections encrypt the packet content at each session, ensuring a secure and reliable management experience. **Hardware Specifications** **Copper Ports** The switches have 8 10/100/1000Base-T RJ-45 ports, which are auto-MDI/MDI-X ports shared with ports 1 to 8. Additionally, there are 24 SFP/mini-GBIC slots for 100/1000Base-X dual-speed interfaces. **Console Port** There is a 1 x RS-232 to RJ45 serial port for console access, with the following settings: 115200, 8, N, and 1. **Switch Architecture** The switches are store-and-forward switches with a non-blocking fabric architecture. They offer a throughput of 35.7Mpps@64Bytes, an address table of 16K entries with automatic source address learning and ageing, and a shared data buffer of 16M bits. The switches also support IEEE 802.3x pause frames for full-duplex operation and back pressure for half-duplex operation. They allow for jumbo frames of up to 10K bytes and have a reset button that resets the system in less than 5 seconds or factory default settings in more than 5 seconds. **LED Indicators** The switches have various LED indicators for different functions, including system power (green), DC power (green) for the GS-5220-16S8CR only, fault (red), and fan (red). The 10/100/1000T RJ45 interfaces (ports 1 to 8) have LED indicators for 1000Mbps link/activity (green) and 10/100Mbps link/activity (orange). Similarly, the 100/1000Mbps SFP interfaces (ports 1 to 24) have LED indicators for 1000Mbps link/activity (green) and 100Mbps link/activity (orange). **Power Requirements** The GS-5220-16S8C requires 100 to 240V AC power at 50/60Hz, while the GS-5220-16S8CR requires the same range but also needs 48V DC power at 0.6A. The power consumption of the switches is 45 watts or 153 BTUs (maximum). **ESD Protection** The switches have ESD protection of 6KV DC. **Layer 2 Functions** The switches offer various layer 2 functions, including port configuration, auto-negotiation for 10/100/1000Mbps full and half-duplex mode selection, flow control disable/enable, and port status display for each port’s speed, duplex mode, link status, flow control status, auto-negotiation status, and trunk status. They also support port mirroring for TX/RX/Both, many-to-1 monitoring, VLAN 802.1Q tagging, Q-in-Q tunneling, private VLAN edge (PVE), MAC-based VLAN, protocol-based VLAN, voice VLAN, IP subnet-based VLAN, MVR (Multicast VLAN Registration), up to 255 VLAN groups out of 4094 VLAN IDs, link aggregation with IEEE 802.3ad LACP/Static trunk for 12 groups of 8-port trunk, Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Quality of Service (QoS) with traffic classification based on strict priority and weighted round-robin (WRR), port number, 802.1p priority, 802.1Q VLAN tag, and DSCP/TOS field in the IP packet. They also support IGMP Snooping for IGMP (v1/v2/v3), up to 255 multicast groups, IGMP Querier mode support, MLD Snooping for MLD (v1/v2), up to 255 multicast groups, MLD Querier mode support, access control list (ACL) for IP-based ACL and MAC-based ACL, up to 256 entries, and bandwidth control with per-port bandwidth control for ingress (100Kbps to 1000Mbps) and egress (100Kbps to 1000Mbps). **Layer 3 Functions** The switches offer various layer
