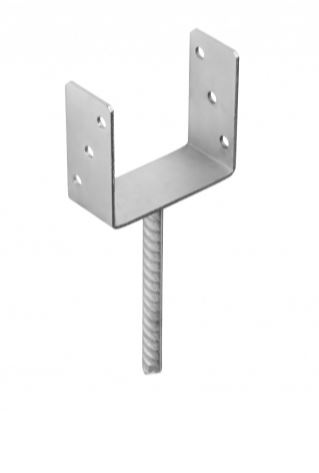

U SHAPE/TYPE WITH PIN FENCE POST FOOT,SUPPORT, ANCHOR; 3mm THICK HEAVY DUTY, GALVANISED

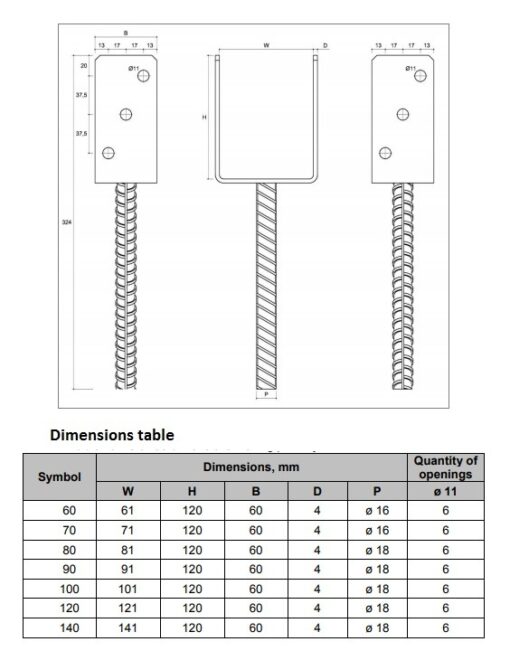

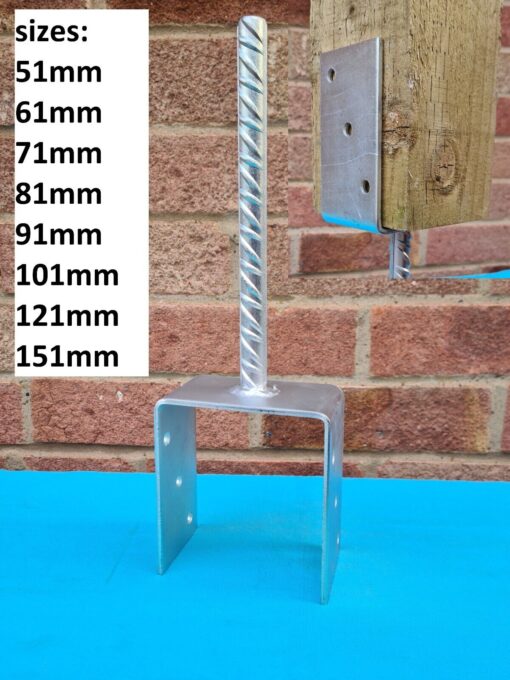

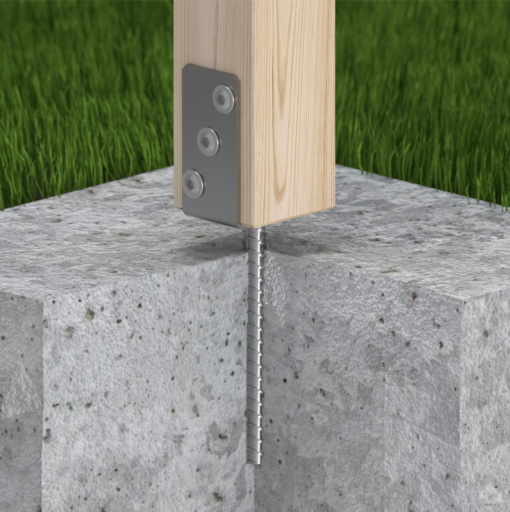

Description HEAVY DUTY GALVANISED U TYPE WITH PIN FENCE POST FOOT ,SUPPORT, ANCHOR; 3mm THICK     Description                  Our post supports are designed to fit the following posts :  Post support gives the post necessary protection against the attack of termites and moisture. It provides a quick and affordable method of fastening timber post. This kind of post anchor not only protects the post from corrosion, but also fixed it in the desired place firmly   Advantages: •             Comply with building code requirements •             Long term of providing protection •             Enhance the stability of the post •             Perfect for timber post •             Anti-rust •             Can be used in humid environments •             Additionally, the zinc plating means it is corrosion resistant so that it can be used for a very long time and makes your cost effective   Recommended fixings M10 Please note that occasionally the colour of the galvanised finish may vary from the one on the picture.       60mm x 60mm  (2.36″) TOTAL HEIGHT 307mm ; BASE PLATE : a61mm x b100mm x c50mm 2 x 2 (11mm holes) thickness 3mm 70mm x 70mm  (2.8″)  TOTAL HEIGHT 315mm;  BASE PLATE : a71mm x b115mm x c60mm 2 x 3 (11mm holes) thickness 4mm 75mm x 75mm  (3″) TOTAL HEIGHT 315mm  ; BASE PLATE : a75mm x b115mm x c60mm 2 x 3 (11mm holes) thickness 4mm 80mm x 80mm  (3.1″) TOTAL HEIGHT 315mm ; BASE PLATE : a81mm x b115mm x c60mm 2 x 3 (11mm holes) thickness 4mm 90mm X 90mm  (3.5″) TOTAL HEIGHT 320mm  ; BASE PLATE : a91mm x b120mm x c60mm 2 x 3 (11mm holes) thickness 4mm 100mm x 100mm  (4″) TOTAL HEIGHT 320mm ; BASE PLATE :l a101mm x b120mm x c60mm 2 x 3 (11mm holes) thickness 4mm 120mm x 120mm  (4.7″) TOTAL HEIGHT 320mm ; BASE PLATE : a121mm x b120mm x c60mm 2 x 3 (11mm holes) thickness 4mm150mm x 150mm  TOTAL HEIGHT 320mm ; BASE PLATE : a151mm x b120mm x c60mm 2 x 3 (11mm holes) thickness 4mm
