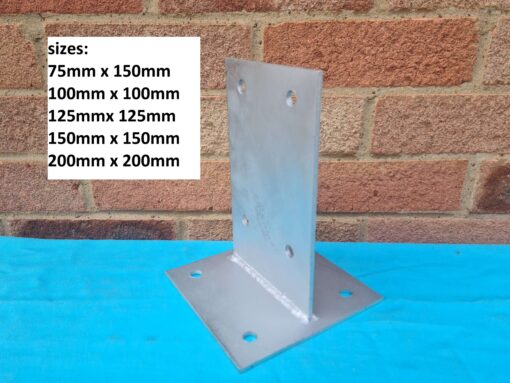

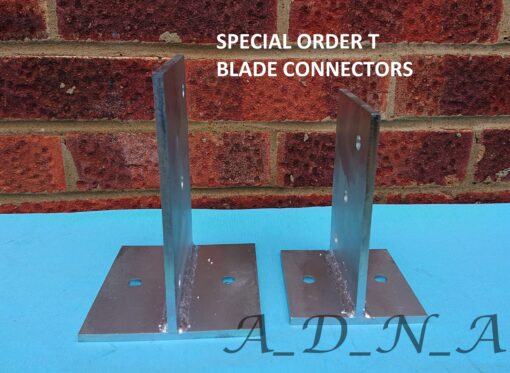

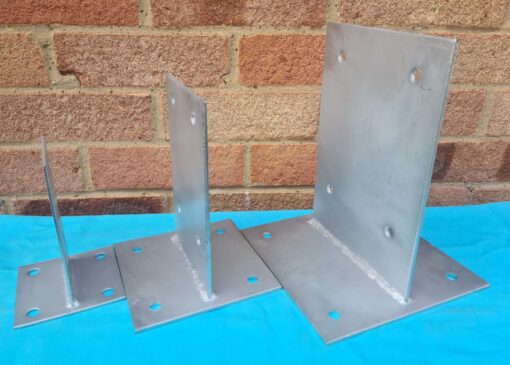

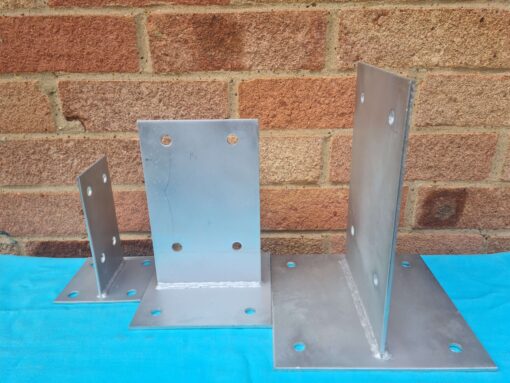

Description Galvanized Steel T Blade Bolt Down Post Support and Timber Connector Can be used as a post support or timber connector 8 x 12mm side holes full length welds Dimensions: Base: 75mm x 75mm Plate : 55mm width x 130mm height thickness 4mm holes 8mm Base: 75mm x 150mm Plate : 75mm width x 150mm height thickness 3mm or 6mm Base: 100mm x 100mm Plate : 80mm width x 150mm height thickness 3mm or 5mm Base: 125mm x 125mm Plate : 105mm width x 180mm height thickness 3mm or 5mm Base : 152mm x 152mm Plate : 130mm width x 200mm height thickness 4mm Base 200mm x 200mm Plate : 180mm width x 250mm height thickness 4mm SET OF CONNECTORS/DOWELS AVAILABLE HERE : https://www.adnacomponents.co.uk/product/set-of-dowels-connectors-100mm-150mm-200mm/ Connectors can go in any direction: vertically, horizontally or even diagonally! To install, a slot is cut in the base of the timber post to fit over the post support giving a neat finish with just the bolts showing. For timber connection: This connector is mostly hidden and no special skills are required. T Connectors greatly simplifies post and beam construction by eliminating the need to cut mortise-and-tenon joint. After mounting our post and beam connectors on the posts with wood screws, the horizontal and diagonal members are slotted, holes are drilled from the back side, and then solid pins are driven through the plates to make a strong, concealed connection. It keeps the concrete footing and fence post totally off the ground. So the wood is free of damage of termites. Additionally, the holes on plates means that it is easy and firmly to fix the post anchor on the cement flooring. So it is widely used in concrete structure. It facilitates fixing of the wooden elements with concrete, assures appropriate separation between wood and substrate. https://www.adnacomponents.co.uk/wp-content/uploads/2018/07/20220610_175146.mp4 https://www.adnacomponents.co.uk/wp-content/uploads/2018/07/20220611_133405.mp4
