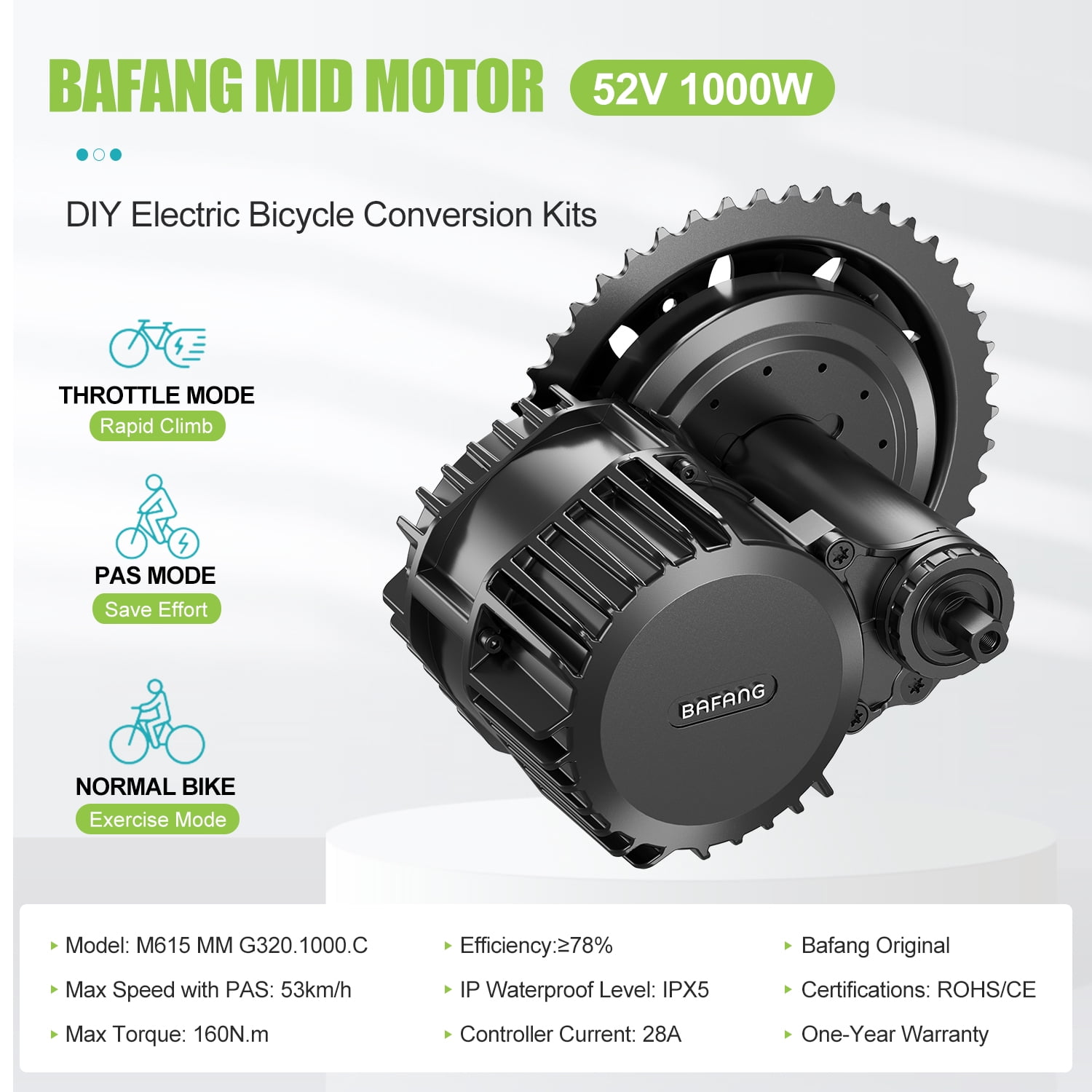

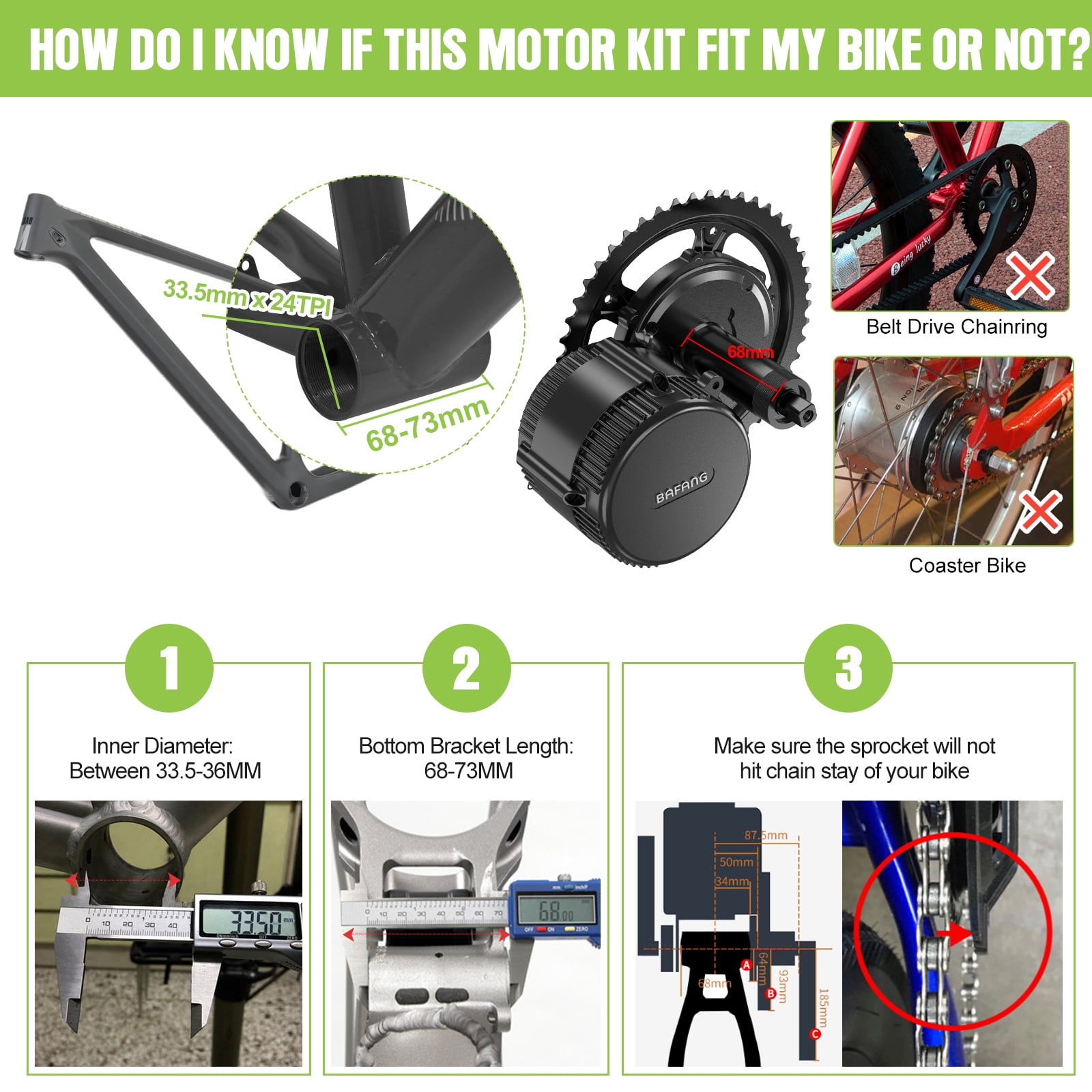

✅ Local Service: Enjoy the convenience of US 2-7 working days fast delivery and local repair service.✅ Warranty: Rest easy with a 1-year quality warranty for main parts. Free repair or replacement in case of any quality issues.✅ Overseas After-Sales Site: Benefit from a US maintenance point for hassle-free post-purchase support. 52V1000W Mid Drive Motor Specification:Bafang Model: M615 MM G320.1000.CPower: 1000WVoltage:52VController Current: 28AMax speed with Pedal Assistance: 53km/hNo Load Speed(RPM) :160±10Load Speed(RPM): 125±5No-load Speed: 75.6km/hLoad Speed: 53km/hMAX Torque: 160N.m 78%PAS SENSOR : Speed SensorReduction Ratio: 1 : 21.9Motor Operation Temperature:-20℃-45℃Bafang Controller: Integrated Inside the MotorBracket bottom length: 68mm(The bottom bracket shall be 68-73mm)Certification:CE/EN 14764/ROHSWaterproof Grade:IPX5Net Motor Weight: 5.6kg Note: Gear shift sensor and Battery are not Included. Please contact us if you want to purchase. Versatile Mid-Drive Motor: The Bafang M615 MM G320.1000.C is a powerful 52V 1000W mid-drive motor, compatible with bikes featuring a bottom bracket width of 68mm to 73mm (2.68 inches to 2.87 inches), making it suitable for a broad range of bicycle models. Adjustable Compatibility: With an inner diameter bracket requirement of 34-36mm, this motor is designed to fit most standard bikes. For 73mm bottom brackets, additional installation accessories are provided to ensure a perfect fit. Special Instructions for 73mm Bottom Brackets: If your bike has a 73mm bottom bracket, simply contact us after checkout, and we will include the necessary extra installation accessories to accommodate this size. Easy Installation and Compatibility: The M615 MM G320.1000.C features a JIS bottom bracket standard, which is similar to the square tapered spindle found in many US bicycles. Reliability and Safety: This mid-drive motor boasts an IP X5 rating for water resistance and carries CE and EN 14764 certifications, ensuring that your e-bike conversion is both safe and durable.
