Wiska TKE/P 50

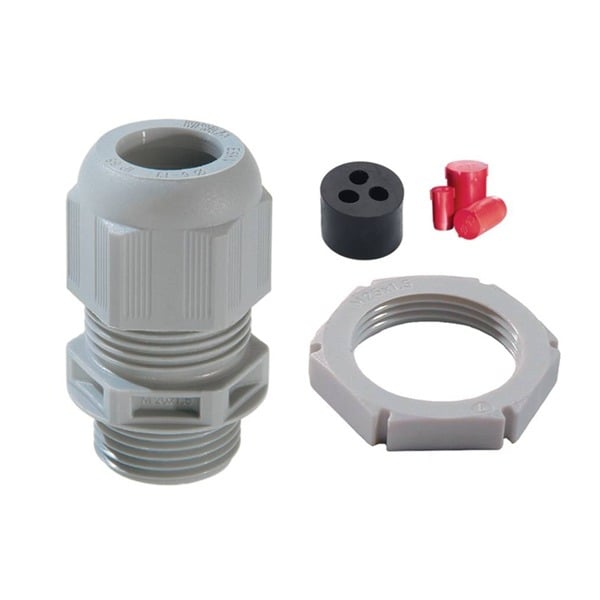

Description Overview: Wiska 3-Phase Tails Kit includes ESKV cable glands with multiple insert, locknut and blind plug. Cable gland is made of polyamide and EPDM sealing gasket. 750°C glow wire test. Available in light grey. TKE/P 50 type Suitable for 4 x 25mm/1 x 16mm tails/earth cables IP66 and IP68 protection class Light grey colour Specification: Material cable gland: Polyamide Material sealing gasket: EPDM Temp. range min: -40 °C Temp. range max: 100 °C Protection class: IP66, IP68 (5 bar 30 min) Product Color: RAL 7035 Thread type: M Ø Connection thread: D 50 Lead: 1,5 Length screw-in thread L: 14 mm Key width SW: 55 mm Total length TL: 59 mm – 72 mm Glow wire test: 750 °C Type of cable anchorage: A Install. torques fitting: 30 N/m Install. torques cap nut: 30 N/m Impact category: 5 Order no. RAL 7035 10106246 Type: Wiska TKE/P 50 Packing unit: 1 ETIM-Classification EC000441 IP 68 Plastic cable gland. ESKV 50/ MFD 4 x 25 tails and 110-16mm earth. Kit contains insert, locknut and blanking insert. Press here to view the datasheet for additional information. Click here to view our selection of weatherproof enclosures applicable to the Wiska TKE/P 50 . Click here for our full range of Wiska accessories.
