Wiska TKE/P 32

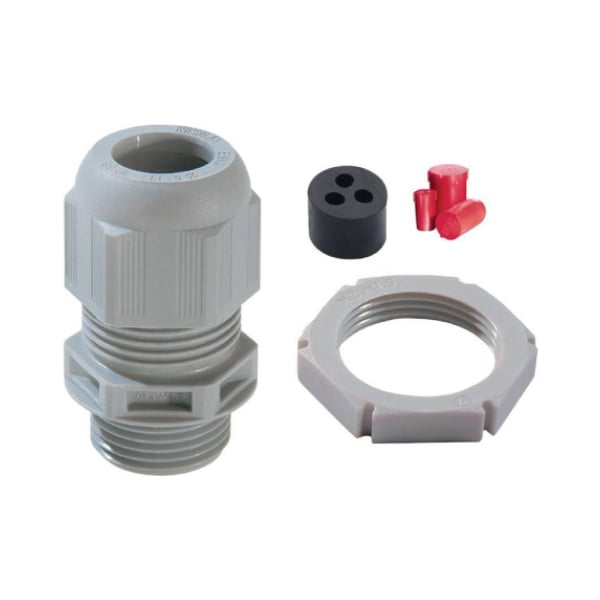

Description Overview: Wiska TKE/P32 Sprint plastic tails kit consists of a 32mm IP68 dome top cable gland, lock nut, multiple insert and blanking insert suitable for use with 2 x 16mm cables and 1 x 16mm Earth wire. Blanking plug is supplied to enable installation without earth wire. TKE/P32 Plastic Tails Kit For 2 x 16mm 1 x 16mm Cable. Insert suitable for flat cable 10mm and 16mm Vibration resistant IP68 Rated, halogen free High temperature 960° Complies to the new BS7671 Amendment 3 IET Regulations (17th Edition) Strain relief for cables to IET526.6 Specification: Material cable gland: Polyamide Material sealing gasket: EPDM Temp. range min: -40 °C Temp. range max: 100 °C Protection class: IP66, IP68 (5 bar 30 min) Product Color: RAL 7035 Thread type: M Ø Connection thread D: 32 Lead: 1,5 Length screw-in thread L: 12 mm Key width SW: 36 mm Total length TL: 42 mm – 51 mm Glow wire test: 750 °C Type of cable anchorage: A Install. torques fitting: 15 N/m Install. torques cap nut: 4 N/m Impact category: 4 Order no: RAL 7035 10106242 Type: Wiska TKE/P 32 Packing unit: 1 ETIM-Classification EC000441 Description: IP 68 Plastic cable gland. ESKV 32/ MFD 1 x 16 mm Tails and 2 x 9 mm Earth. Kit contains insert, locknut and blanking insert. Press here to view the datasheet for additional information. Click here to view our selection of weatherproof enclosures applicable to the Wiska TKE/P 32 . Click here for our full range of Junction Box accessories.
