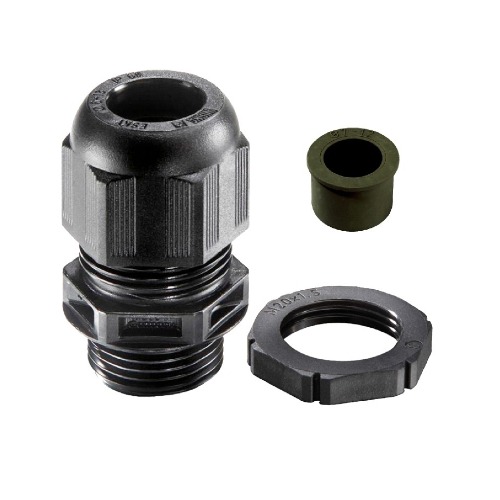

GLP20 RDE Black (10 Pack)

Description Overview: Supplied complete with locknut and reduction sealing insert Halogen free Vibration proof M20 Thread 5 bar Suitable for cable with a minimum size of 4mm and a maximum of 16mm Flame protection: glow wire test 750°C accurate to BS EN 60695-2-11 Temperature range: -40°C to 100°C, interm up to approximately 120°C Resistance to acetone, benzine, benzene, diesel oil, oils and greases, paint and varnish solvents Specification: Material cable gland: Polyamide Material sealing gasket: EPDM Protection class: IP69, IP68 (5 bar 30 min) Temp. range min: -40 °C Temp. range max: 100 °C Glow wire test: 750 °C Thread type: M Ø Connection thread D: 20 Lead: 1,5 Length screw-in thread L: 10 mm Ø cable diameter min: 4 mm Ø cable diameter max: 14 mm Key width SW: 24 mm Collar diameter (E): 27 mm Total length TL: 36 mm – 45 mm Type of cable anchorage: A Install. torques fitting: 4 N m Install. torques fitting/EADR: 3 N m Install. torques cap nut: 3 N m Product Color: RAL 9005 Type: GLP20 RDE black Order no. RAL 9005 10100636 Packing unit: 10 View the datasheet for any additional information you may require. Click here to view our selection of weatherproof enclosures applicable to the GLP20 RDE. Click here for our full range of Wiska accessories.
