Wiska Combi 304 / 3-221-413

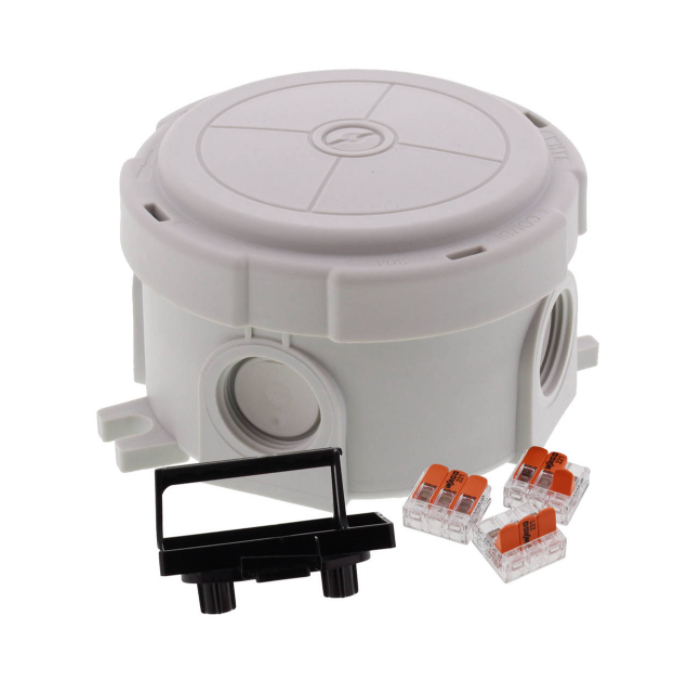

Description Wiska Combi 304 / 3-221-413 Junction Box Overview: High-quality material: UV and Ozone resistant. Suitable for indoors and out ​High protection class IP66. With cable gland even IP67. Flat lid: Bayonet cap (screwed by a quarter turn) Unique hook closing mechanism to prevent unauthorised access. Tool required to gain access once closed. Mounted using external lugs 4 x M20 threaded membrane entries Available in 3 colours (White, Black, Grey) Specification: Material: Polypropylene Material sealing gasket: TPE Temp. range min: -30 °C Temp. range max: 100 °C Temperatures during install: -5 °C – 60 °C Protection class: IP66 / IP67 Glow wire test: 750 °C Voltage: 400 V Rated cross section: 2,5 mm² Terminals/poles: 4 mm² Fixing: 2 external mounting feet Ø cable diameter min: 3 mm Ø cable diameter max: 12 mm External dimensions LxWxH: Ø 82 x 57mm Type of cable gland: M 20 x 1,5 Product Color: Black, White, Grey WISKA-Order no: 10110636, 10110635, 10110637 Type: COMBI 304 / 3-221-413 BK Packing unit: 5 ETIM-Classification: EC002600 Equipment Included: – 4 M20 threaded membrane entries – including terminal carrier on quick mounting plate mounted 3x WAGO 221-413 enclosed loose Press here to view the datasheet for additional information. Click here to view other weather proof enclosures alongside the Wiska Combi 304 / 3-221-413 .
