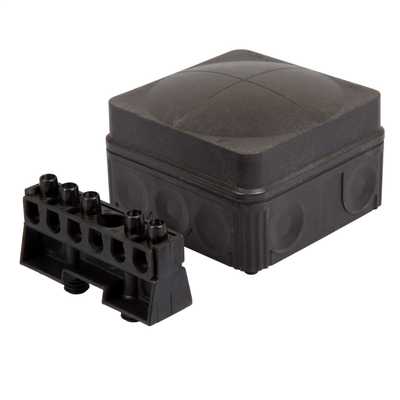

Wiska Combi 108/5 IP66 Junction Box

Description Wiska Combi 108/5 IP66 Junction Box Overview: 10% more room inside, thanks to the bellied cover Solid thermoplastic housing made from 2 different moulded materials 12 elastic self-sealing membranes for cable entry without mechanical devices (10 on sides, 2 in base) Quick-release lid screws made of plastic will not rust and stay securely in place Weather proof, resistant to ultraviolet, shatter proof and impact resistant Flame retardant and halogen free Mounting clip for Snap-on fixing or via 2 internal openings outside of the sealing area EN60529, EN60695-2-11 Specification: Material: Polypropylene Material sealing gasket: TPE Temp. range min: -30 °C Temp. range max: 100 °C Temperatures during install: -5 °C – 60 °C Protection class: IP66 Glow wire test: 750 °C Voltage: 400 V Rated current / A (Terminal): 24 A Rated cross section: 2,5 mm² Terminals/poles: 5 x 2,5 mm² Fixing: 2 internal openings Ø cable diameter min: 3 mm Ø cable diameter max: 14 mm External dimensions LxWxH: 76 x 76 x 51mm Product Color: Black, White, Grey WISKA-Order no: 10061998 Type: COMBI 108/5 BK Packing unit: 10 ETIM-Classification EC002600 Equipment: – 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom – inclusive terminal block 5-poles, 2,5mm² Fixing: By two internal openings outside of the sealing area Press here to view the datasheet for additional information. Click here to view other weather proof enclosures alongside the Wiska Combi 108/5.
