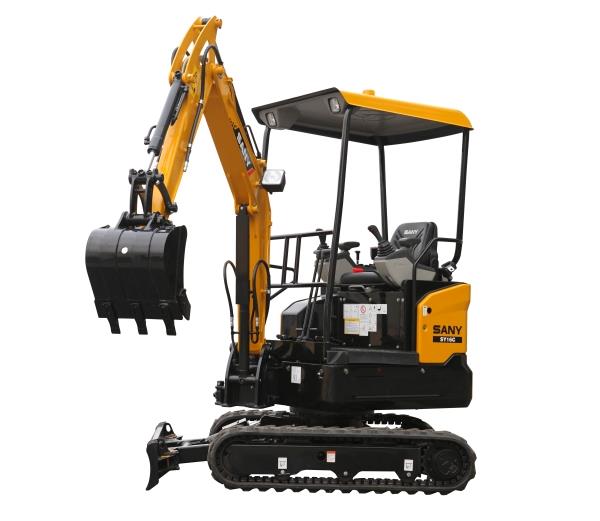

Description City construction, landscape engineering, and farmland improvements. Lean, yet powerful, the SANY SY16C mini excavator offers versatility and reliability in a wide variety of settings. The SY16C is designed to be nimble for jobs in tight spaces, whether in forestry, indoor job sites or narrow urban locations. Environmentally friendly and cost efficient. Sany Mini Excavator Detailed Specifications Minimal tail swing radius and independent boom swing allow operation in extremely confined spaces The independently developed intelligent control system matches pump output to available engine power for greater hydraulic system efficiency and lower fuel consumption Overall Dimensions Boom Length: 1,810 mm/5′ 11″ Stick (Arm) Length: 1,130 mm/3′ 8″ Transport Length: 3,575 mm/11′ 9″ Transport Width: 980/1,350 mm3′- 3″ / 4′ 5″ Transport Height: 2,420 mm7′ / 11″ Upper Structure Width: 980 mm3′ / 3″ Cab Height: –– Blade Height: 270 mm / 11″ Track Width (standard shoe): 230 mm / 9″ Track Gauge: 750/1,120 mm2′ / 6″/3′ 8″ Ground Clearance (minimum): 180 mm / 7″ Tail Swing Radius: 920 mm / 3′ 0″ Track Length on Ground: 1,220 mm / 4′ 0″ Track Length: 1,585 mm / 5′ 2″ Technical Specifications Operating Weight: 1,825 kg / 4,023 lb Ground Pressure: 29.1 kPa / 4.2 psi Engine: Yanmar 3TNV74F Displacement: 1.0 L / 60.6 in3 Gross Power: 11.2 kW / 15.0 HP Hydraulics: Load Sensing with Pilot Control Main Hydraulic Pump: Axial Piston – Variable Displacement Operating Flow (maximum): 48.0 L/min / 12.7 gal/min Operating Pressure (maximum): 24.5 MPa / 3,553 psi Auxiliary Flow: –– Auxiliary Pressure: –– Travel Motor: Axial Piston Travel Pressure (maximum): 24.5 MPa / 3,553 psi Travel Speeds (maximum): 2.1 / 3.7 km/hr / 1.3 / 2.3 mph Travel Effort (maximum): 15.6 kN / 3,507 lbf Grade Capability: 35º Swing Motor: Axial Piston Swing Pressure (maximum): 16.2 MPa / 2350 psi Swing Speed (maximum): 10 rpm Undercarriage (standard): Belted Rubber Track Track Shoe Width (standard): 230 mm / 9″ Track Rollers (per side): 3 Carrier Rollers (per side): – Working Range Boom Length: 1,810 mm / 5′ 11″ Stick (Arm) Length: 1,130 mm / 3′ 8″ Maximum Digging Height: 3,665 mm / 12′ 0″ Maximum Dumping Height: 2,635 mm / 8′ 8″ Maximum Digging Depth: 2,360 mm / 7′ 9″ Maximum Vertical Wall Digging Depth: 2,215 mm / 7′ 3″ Maximum Reach at Ground Level: 4,000 mm / 13′ 1″ Minimum Swing Radius: 1,655 mm / 5′ 5″ Mini Excavator and other Earth Moving And Excavation Tools Available For Rent – From Daily, Weekly, Weekend, and Monthly Periods. Located in Erin, Ontario (Wellington County), we are close to Orangeville, Caledon, Guelph, Hillsburgh, Acton, Fergus, Shelburne, Brampton. Available 7 Days A Week!
